Usage and application of Sputtering Target

Usage and application of Sputtering Target

1. Example of usage and application

  • Optical thin film for display-related
  • Film for index matching for touch panel
  • Anti-reflecting film
  • Alkaline-resistant film
  • ND filter film for digital camera

Function of optical thin film

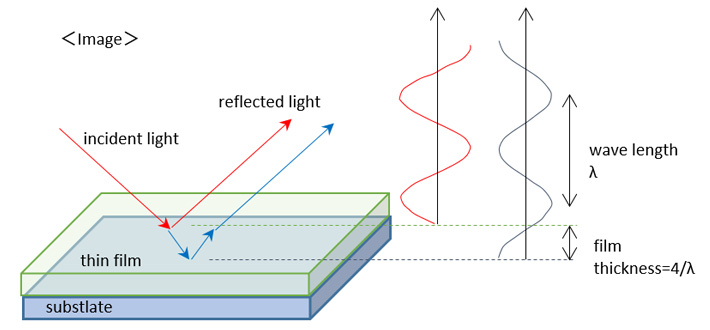

1)Anti-reflecting film

Under the conditions of, film refractive index= n1, film thickness= d and film optical distance n1・d = λ/4 (1/4 of the wavelength of the light), the reflectance index becomes minimum by interference action of the light. In addition, it is possible to deposit anti-reflective film by laminating a high refraction film and a low refraction film under the most suitable optics design.
Image view1

2)Transparent conductive film for thin film type of solar cell (Thin film Si type. CIGS type)

3)Dielectric film for Low-E for building (multi-layer film composed of metal and oxide)

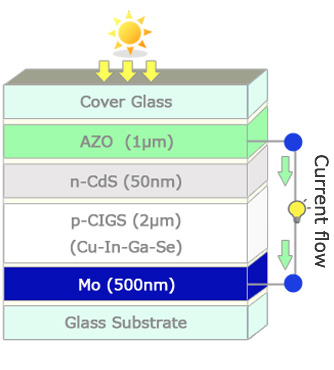

  • 【Solar cell(CIGS type)】
    Solar cell Figure

    AZO thin film for high transmittance of sunlight and carring a current.

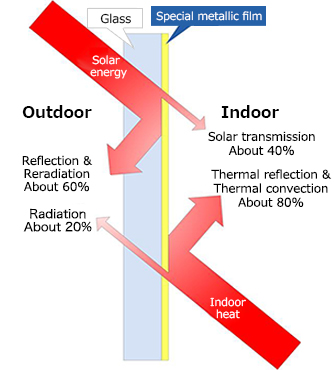

  • 【Low-E multi-layer glass】
    Low-E multi-layer glass Figure

    Multi-layer film composed of metal and oxide is coated on the glass to intercept infrared rays and ultraviolet rays of the sunlight. The function of ST thin film is to protect aforementioned thin film on the glass from damages of acid-rain and scratch.

2.Material design

Sputtering targets with various compositions, which contain the functions such as conductivity, transmissivity, reflectance, absorption ratio and alkaline-resistant, are prepared by our design technology of mixing composition. In addition, if you need some special composition product except the standard ones, please feel free to contact us.

3.Optical design

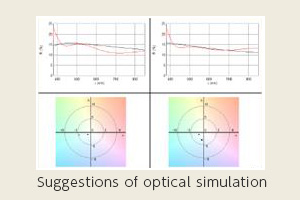

Image view3 different types of target for optical film such as, low refraction film (n=1.46), middle refraction film(n=1.7~2.0)and high refraction film (n=2.2~2.4) are possible to provide.Utilizing an optics simulation technology and selecting suitable target in accordance with the requirements of the customer’s, we propose the most suitable design of multi-layer film among our line-up of products.
